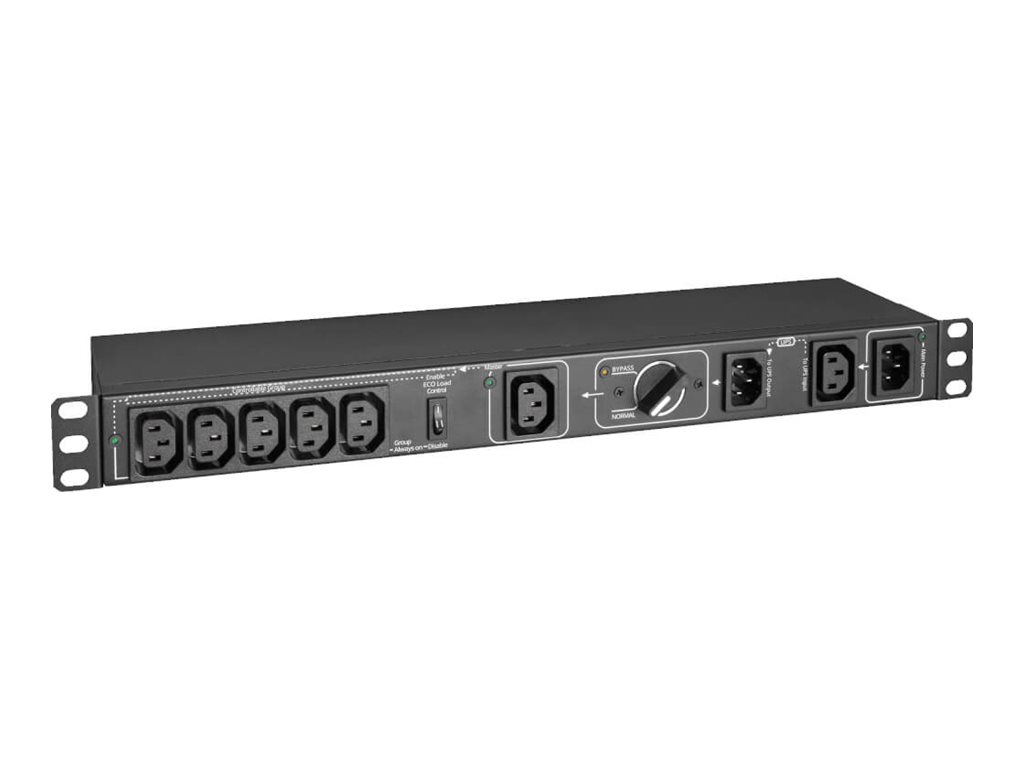

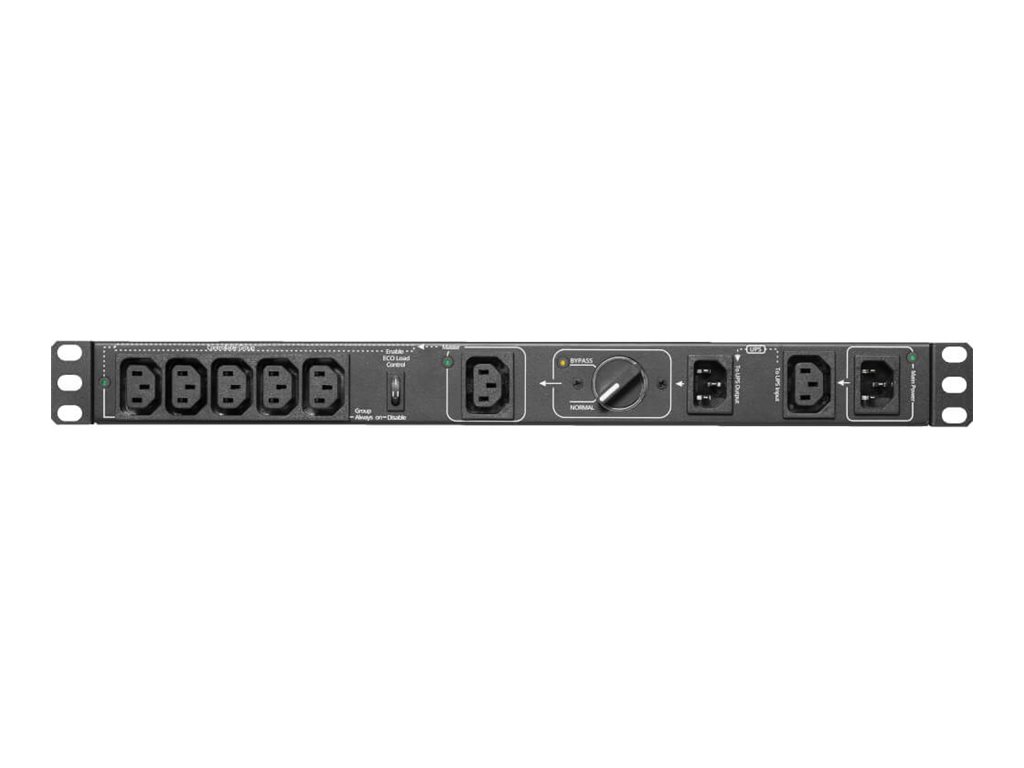

6 C13 Outlets, 2 C14 Inlets, 1U Rack/Wall; - Power distribution unit (rack-mountable) - 10 A - AC 200/220/230/240 V - 2.4 kW - 1-phase - input: IEC 60320 C14 - output connectors: 6 (power IEC 60320 C13) - 1U - 5 ft cord
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series PDU Hot-Swap 200-240V 10A Single-Phase with Manual Bypass - 6 C13 Outlets, 2 C14 Inlets, 1U Rack/Wall; - power distribution unit - 2.4 kW |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 5 ft |
| Rack Size | 1U |
| Weight | 5.2 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 200/220/230/240 V |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 2.4 kW |
| Input Connectors | 2 x power IEC 60320 C14 |
| Output connectors | 6 x power IEC 60320 C13 |
| Dimensions (WxDxH) | 17.2 in x 4 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 5 ft |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

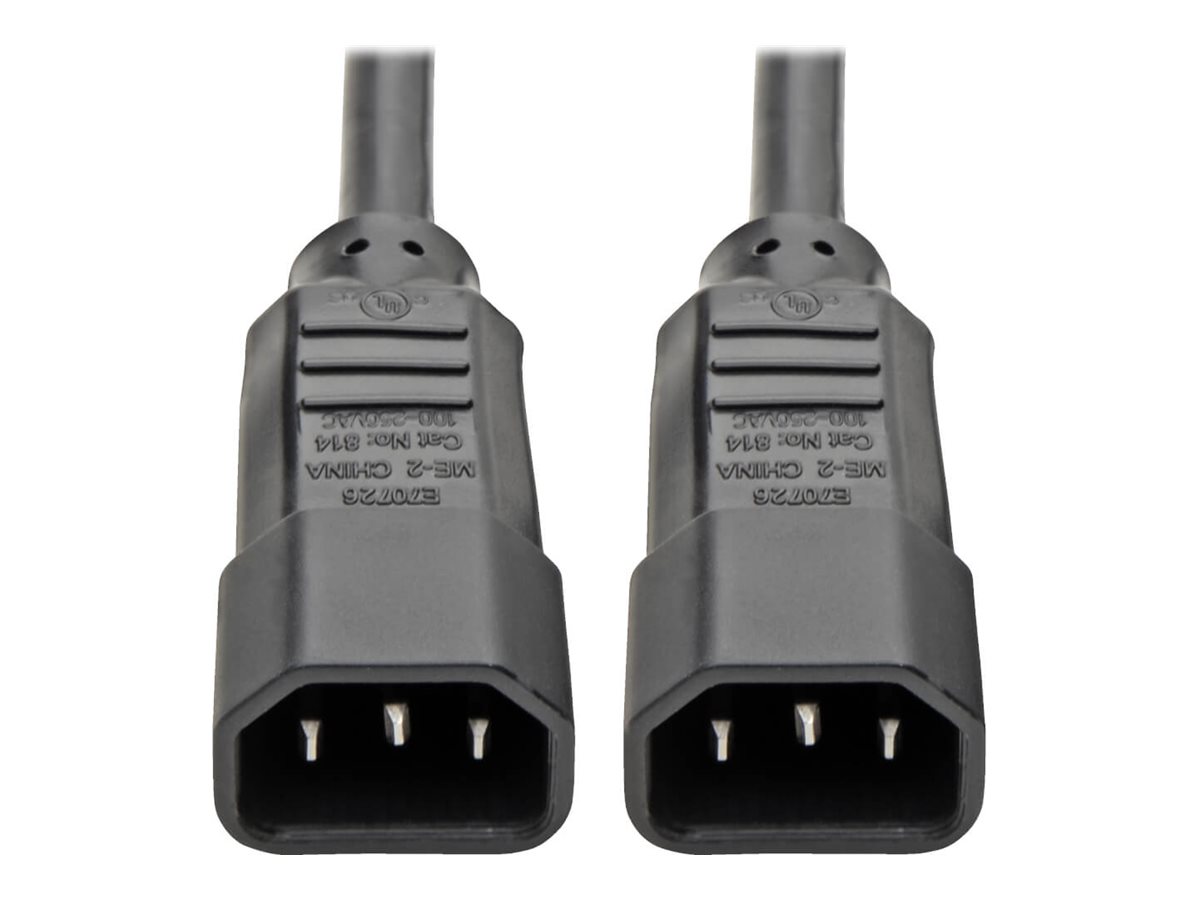

| Cables Included | 2 x power cable (C13-C14) - external - 5 ft |
| Rack Mounting Kit | Included |

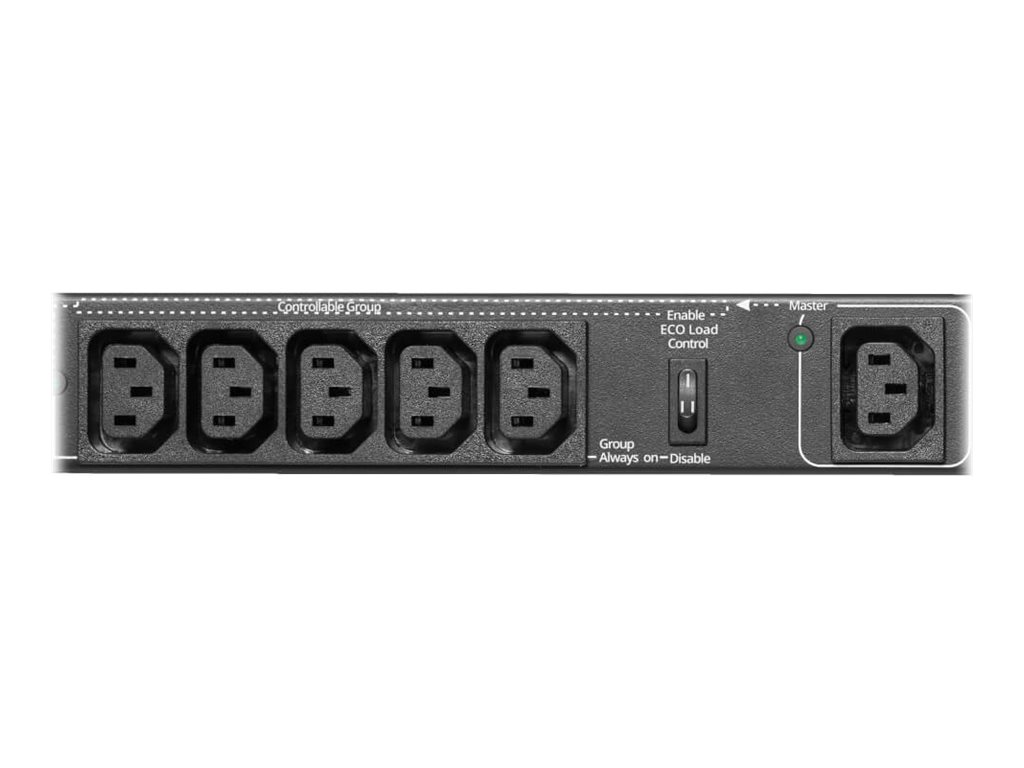

| Features | Horizontal orientation, LED indicators, built-in bypass switch |
| Compliant Standards | CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 62368-1-14, FCC, FCC CFR47 Part 15 B, ICES, ICES-003:2016, Mexico NOM, TUV Rheinland, UL 62368-1, UL 62368-1-2014 Second Edition |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Power Device | |
| Input Voltage | AC 200/220/230/240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C14 |
| Power Output Connectors Details | 6 x power IEC 60320 C13 |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Max Electric Current | 10 A |
| Power Capacity | 2.4 kW |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 4 in |
| Height | 1.7 in |
| Weight | 5.2 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.5 in |
| Shipping Depth | 8.1 in |
| Shipping Height | 5.1 in |
| Shipping Weight | 7.01 lbs |
