SFF 1 x Core i7 12700 / up to 4.9 GHz - vPro - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC, 3D NAND Technology - UHD Graphics 770 - Gigabit Ethernet - Win 10 Pro 64-bit (includes Win 11 Pro License) - monitor: none - keyboard: US - black - Smart Buy - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|

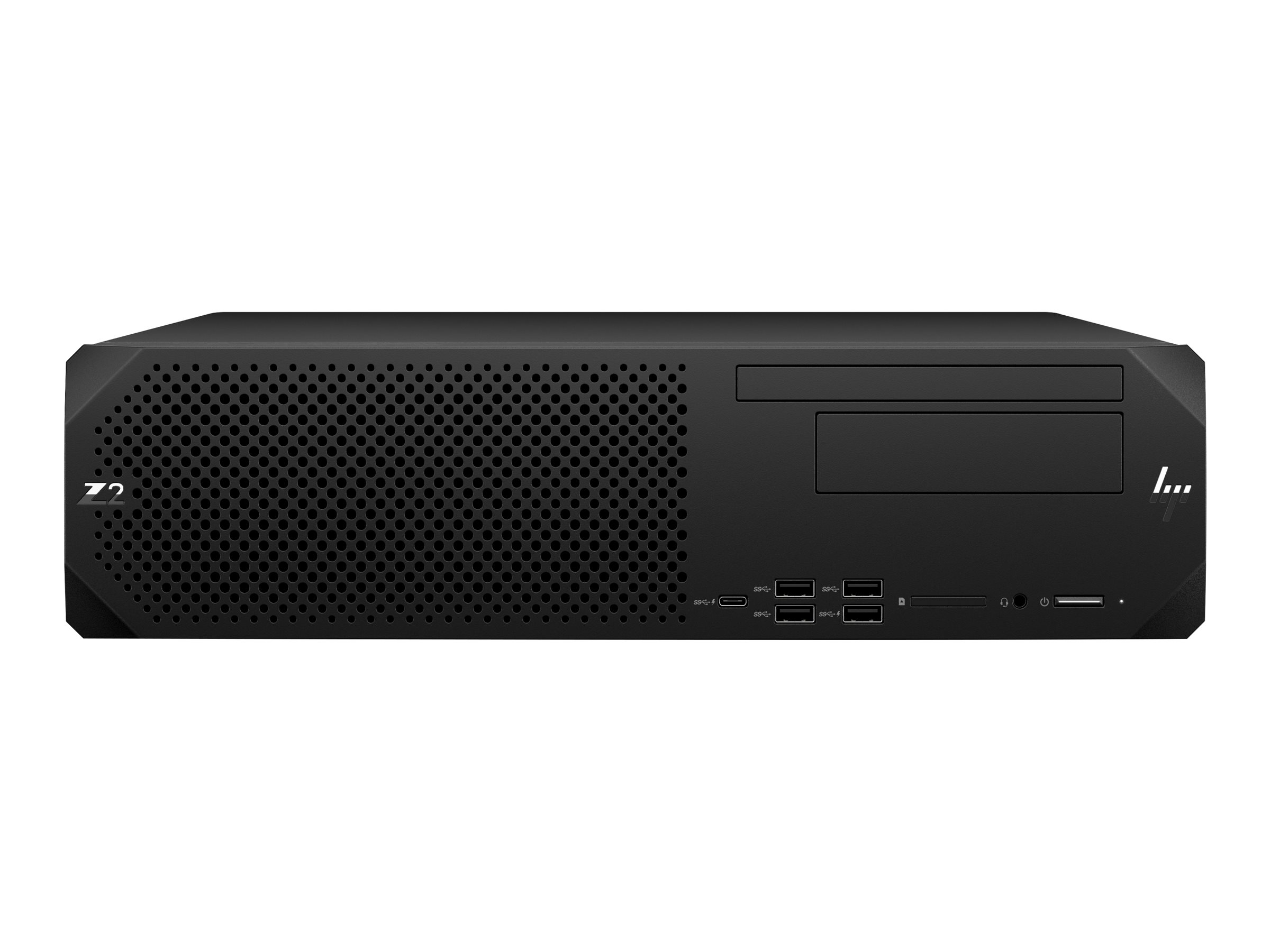

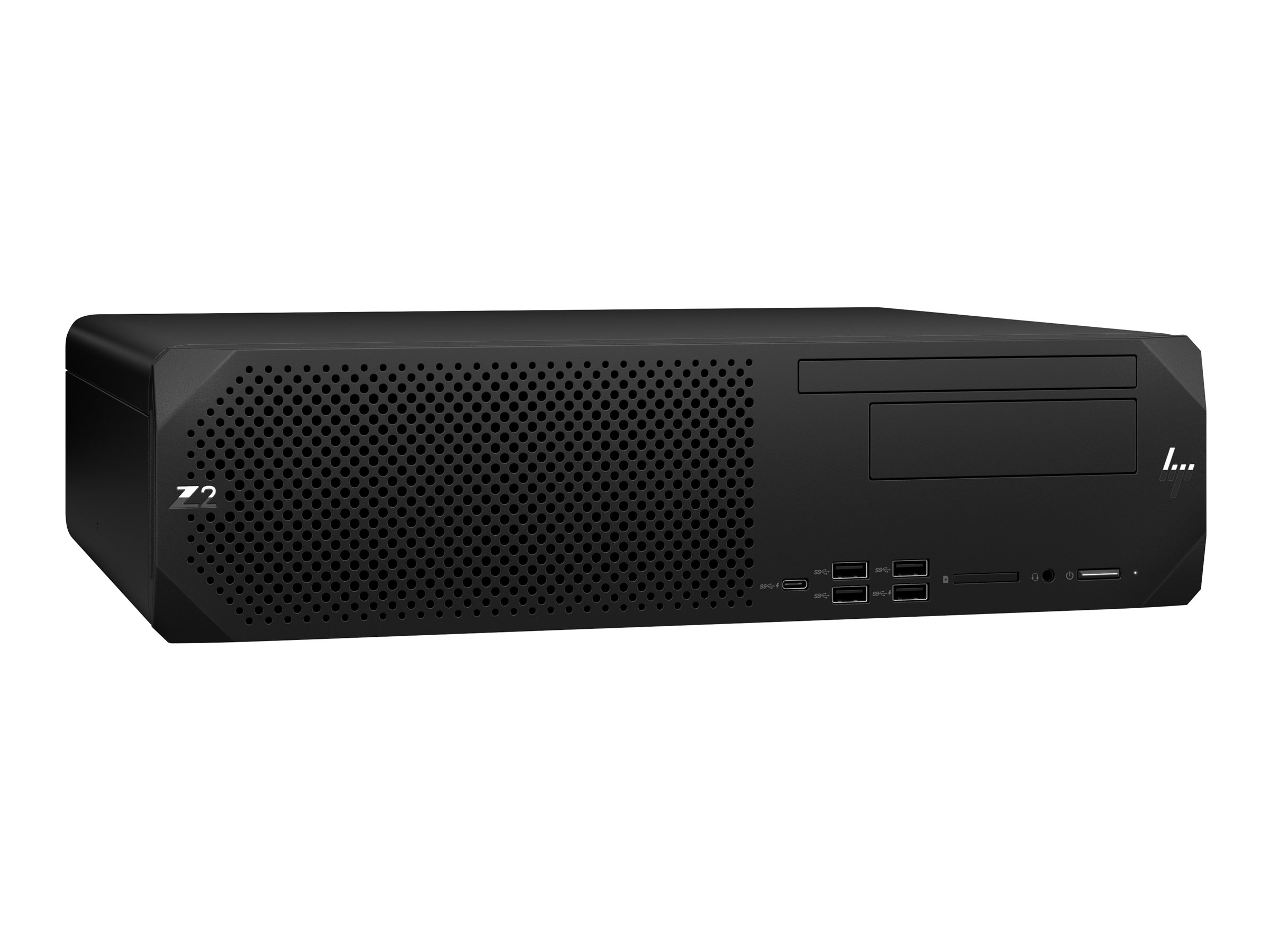

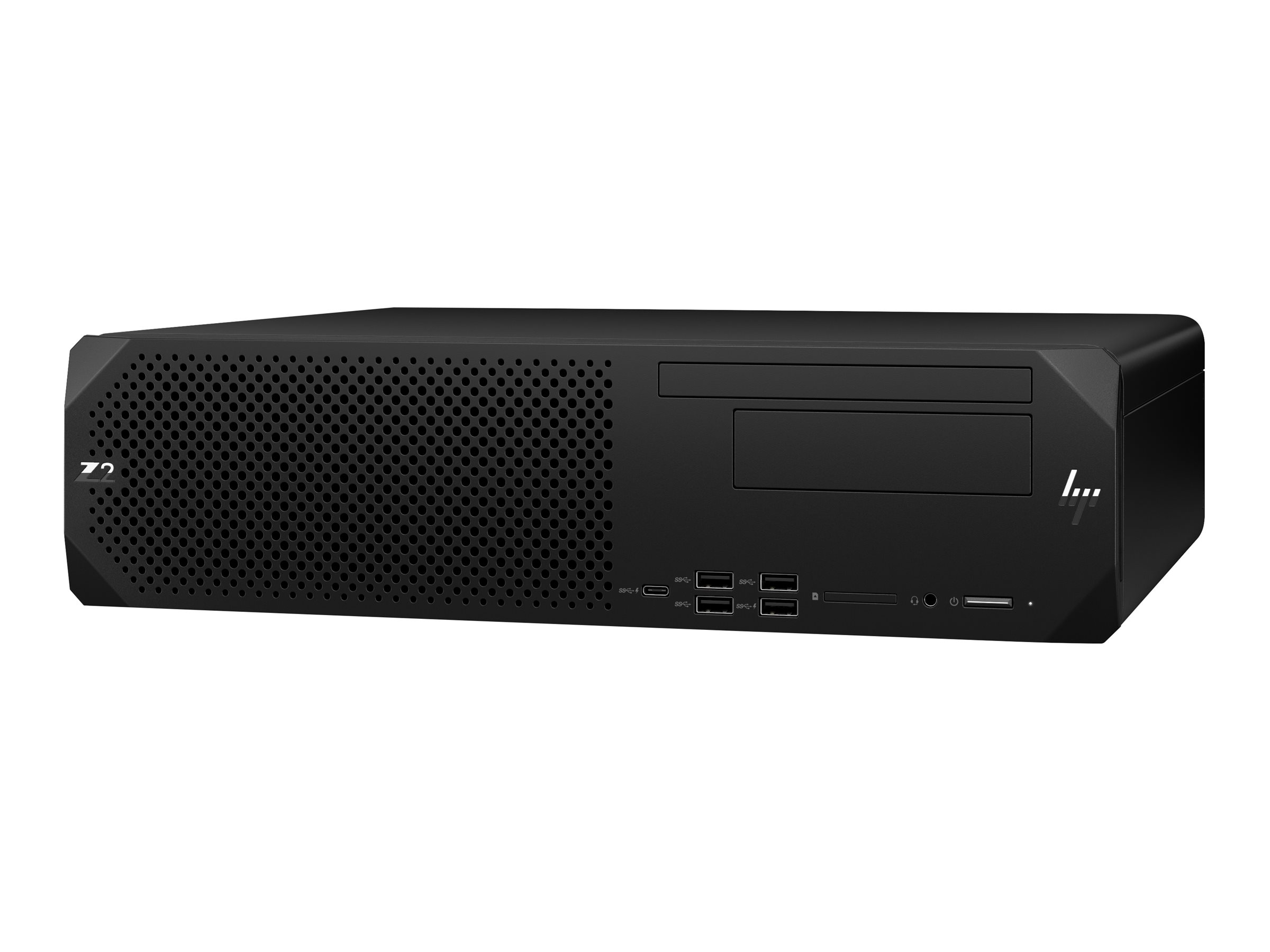

| Product Description | HP Workstation Z2 G9 - SFF Core i7 12700 2.1 GHz - vPro - 16 GB - SSD 512 GB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Workstation - SFF |
| Platform Technology | Intel vPro Platform |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i7 (12th Gen) 12700 / 2.1 GHz (up to 4.9 GHz, (12-core) |
| Processor Socket | LGA1700 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Max 3.0 |
| Cache Memory | 25 MB |
| Cache Per Processor | 25 MB |
| RAM | 16 GB (installed) / 128 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 512 GB - PCI Express 4.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC), 3D NAND Technology |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 Pro 64-bit Edition (downgrade from Windows 11 Pro) + Windows 11 Pro License |
| Software Included | HP Support Assistant, Windows Defender, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Image Assistant (free download), HP Documentation, HP PC Hardware Diagnostics, HP System Software Manager, HP Notifications, HP Privacy Settings, HP Cloud Recovery, HP Performance Advisor (free download), HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utility, myHP, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Easy Clean, HP Smart Support (free download), Data Science Stack, HP Client Security Suite Gen7, HP Smart Health (free download), HP UWP Pack, HP Manageability Integration Kit Gen4 (free download) |
| Color | Black |
| Dimensions (WxDxH) | 15.1 in x 12.1 in x 3.9 in |
| Weight | 11.02 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | TCO Certified Desktops 9, ENERGY STAR Qualified EPEAT Gold |
| Carbon Footprint | 700 kg carbon emissions |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Platform Technology | Intel vPro Platform |
| Type | Workstation |
| Product Form Factor | SFF |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - low-profile (open ended) ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 - low-profile (open ended) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile (x4 mode) ¦ 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module) |
| Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) ¦ 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 1 x audio line-out ¦ 2 x DisplayPort 1.4 ¦ 3 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, Common Criteria EAL4+, CECP, SEPA, low halogen |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, Intel Active Management Technology (AMT) 16 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100/115/230 V (50/60 Hz) |
| Power Provided | 450 Watt |
| 80 PLUS Certification | 80 PLUS |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 25 MB |
| Cache Per Processor | 25 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition (available through downgrade rights from Windows 11 Pro) + Windows 11 Pro License - English |
| Software | HP Support Assistant, Windows Defender, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Image Assistant (free download), HP Documentation, HP PC Hardware Diagnostics, HP System Software Manager, HP Notifications, HP Privacy Settings, HP Cloud Recovery, HP Performance Advisor (free download), HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utility, myHP, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Easy Clean, HP Smart Support (free download), Data Science Stack, HP Client Security Suite Gen7, HP Smart Health (free download), HP UWP Pack, HP Manageability Integration Kit Gen4 (free download) |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 x4 |
| SSD Endurance | 150 TB |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC), 3D NAND Technology |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 15.1 in |
| Depth | 12.1 in |
| Height | 3.9 in |
| Weight | 11.02 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.7 in |
| Shipping Depth | 19.6 in |
| Shipping Height | 9 in |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12700 |
| Clock Speed | 2.1 GHz (P-core) / 1.6 GHz (E-core) |
| Max Turbo Speed | 4.9 GHz (P-core) / 3.6 GHz (E-core) |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Max 3.0 |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel W680 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 700 kg carbon emissions |
| Manufacturing (kg CO2e) | 229 |
| Use (kg CO2e) | 467 |
| EOL (kg CO2e) | 3 |
