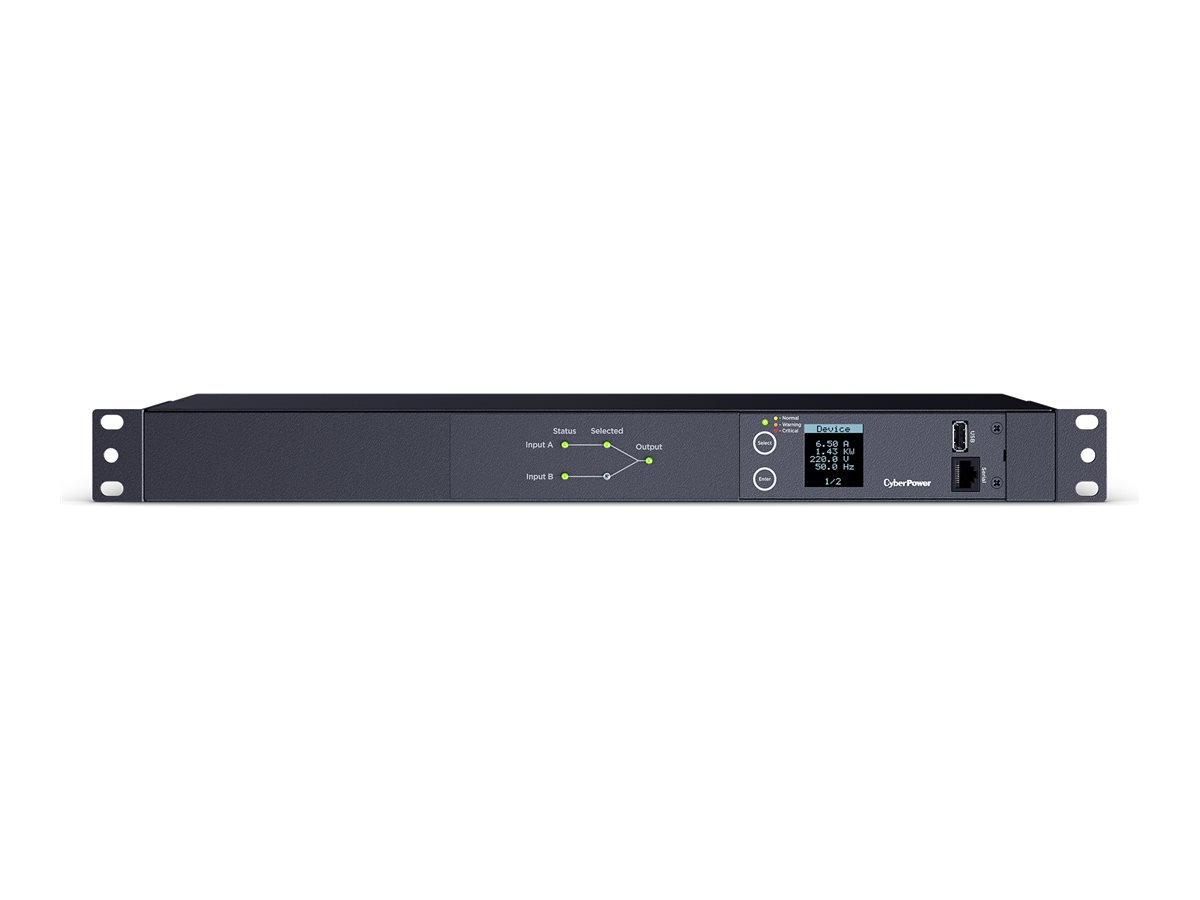

CyberPower - CyberPower Metered ATS Series PDU24004
Power distribution unit (rack-mountable) - AC 200-240 V - 1-phase - serial - input: 2 x IEC 60320 C14 - output connectors: 12 (12 x IEC 60320 C13) - 1U - 10 ft cord - black
CyberPower
PDU24004
N/A
0649532933334
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | CyberPower Metered ATS Series PDU24004 - power distribution unit |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 1U |
| Weight | 7.72 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 200-240 V |
| Input Connectors | 2 x 2 x power IEC 60320 C14 |
| Output connectors | 12 x power IEC 60320 C13 |
| Networking | Serial |
| Included Accessories | Cord retention tray, rack mount brackets, screws, cable ties |
| Color | Black |
| Dimensions (WxDxH) | 17 in x 8.5 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Cord retention tray, rack mount brackets, screws, cable ties |
| Cables Included | 2 x power cable - external - 10 ft ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Features | LCD display, Automatic Transfer Switch (ATS), firmware upgradable |
| Compliant Standards | FCC Class A certified, UL 62368, EN 55032 Class A, IEC 62368, RoHS |
| Networking | |
| Remote Management Interface | Serial |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power IEC 60320 C14 |
| Power Output Connectors Details | 12 x power IEC 60320 C13 |
| Max Electric Current | 12 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 8.5 in |
| Height | 1.7 in |
| Weight | 7.72 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.7 in |
| Shipping Depth | 15.7 in |
| Shipping Height | 4.9 in |
| Shipping Weight | 12.57 lbs |
