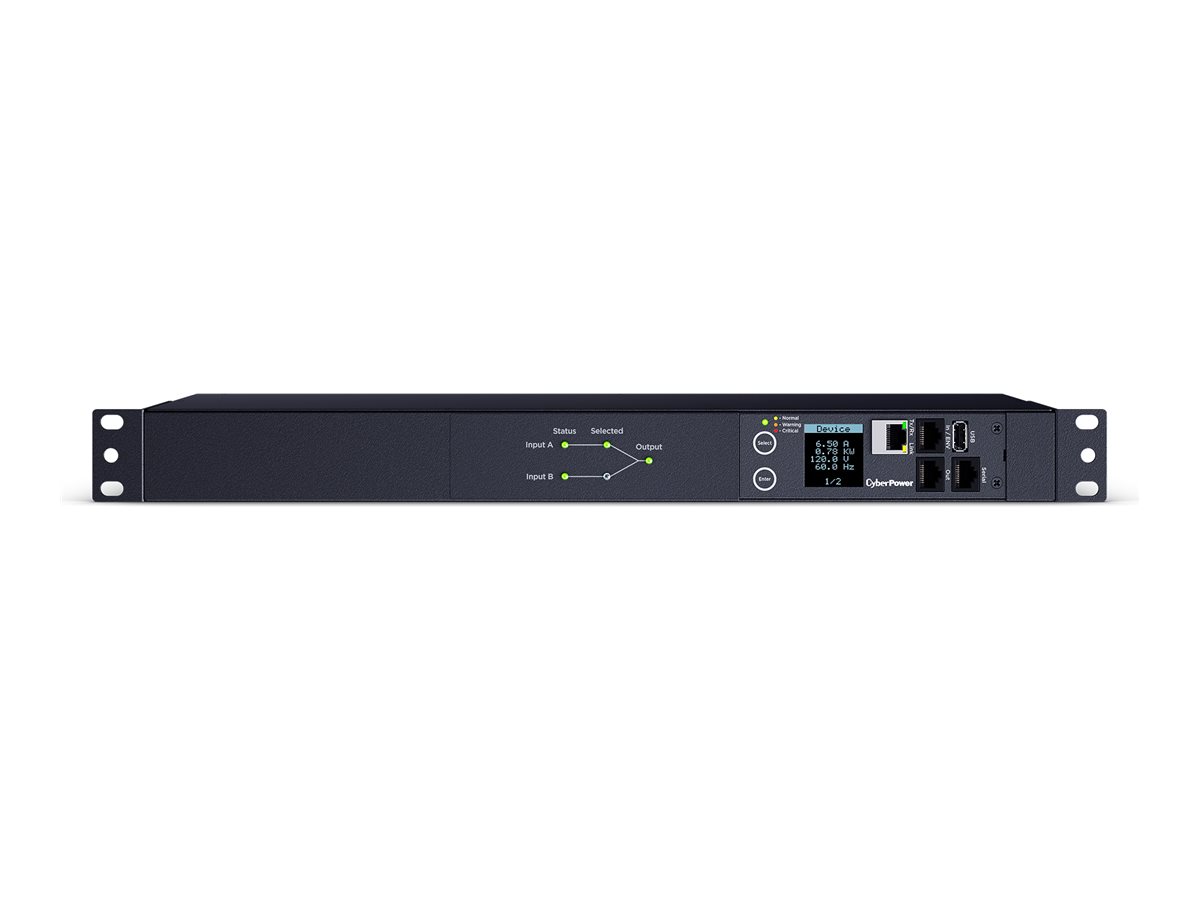

CyberPower - CyberPower Switched ATS PDU44002
Power distribution unit (rack-mountable) - AC 100-120 V - 1-phase - Ethernet, serial - input: 2 x NEMA L5-20P - output connectors: 10 (10 x NEMA 5-20R) - 1U - 10 ft cord - black
CyberPower
PDU44002
N/A
0649532933884
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | CyberPower Switched ATS PDU44002 - power distribution unit |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 1U |
| Weight | 11.31 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 100-120 V |
| Output Voltage | AC 100-120 V |
| Input Connectors | 2 x 2 x power NEMA L5-20P |
| Output connectors | 10 x power NEMA 5-20R |
| Networking | Ethernet, serial |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SMTP, NTP, DHCP, IPv4, IPv6, LDAP, RADIUS |
| Included Accessories | Cord retention tray |
| Color | Black |
| Dimensions (WxDxH) | 17.1 in x 8.4 in x 1.8 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x management (Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cord retention tray |
| Cables Included | Power cable 10 ft ¦ Power cable adapter (L5-20P to 5-20P) |
| Features | Metal housing, LCD display, built-in maintenance bypass, Automatic Transfer Switch (ATS), firmware upgradable |
| Compliant Standards | FCC Class A certified, RoHS, cTUVus, UL 62368 |
| Networking | |
| Remote Management Interface | Ethernet, serial |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SMTP, NTP, DHCP, IPv4, IPv6, LDAP, RADIUS |
| Software / System Requirements | |
| Software Included | PowerPanel Business |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Transfer Time | 10 ms |
| Power Device | |
| Input Voltage | AC 100-120 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power NEMA L5-20P |
| Power Output Connectors Details | 10 x power NEMA 5-20R |
| Output Voltage | AC 100-120 V |
| Max Electric Current | 20 A |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 8.4 in |
| Height | 1.8 in |
| Weight | 11.31 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.6 in |
| Shipping Depth | 15.7 in |
| Shipping Height | 4.9 in |
| Shipping Weight | 15.5 lbs |
