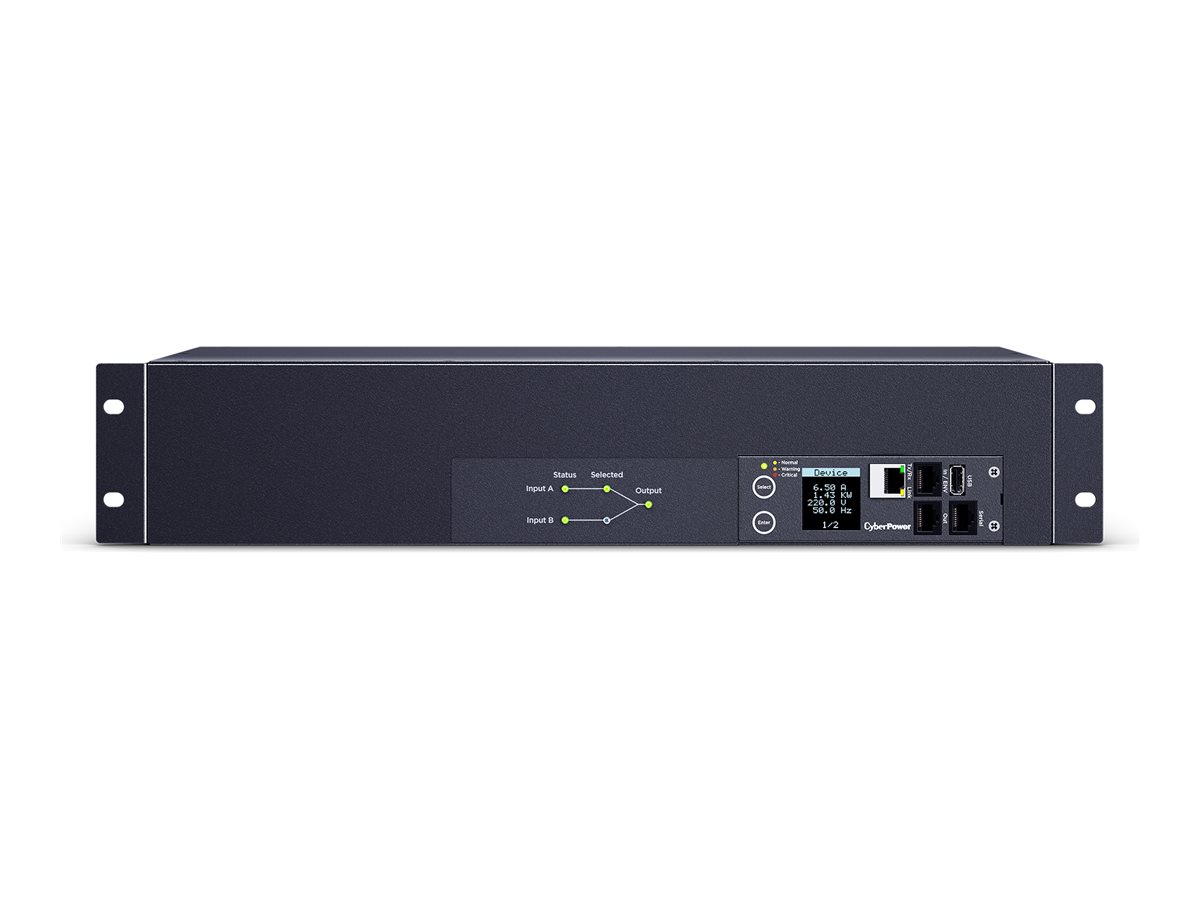

CyberPower - CyberPower Switched ATS PDU44007
Power distribution unit (rack-mountable) - AC 200 - 240 V - 1-phase - Ethernet, serial - input: 2 x NEMA L6-30P - output connectors: 19 (2 x IEC 60320 C19, 16 x IEC 60320 C13, NEMA L6-30R) - 2U - 10 ft cord - black
CyberPower
PDU44007
N/A
0649532933938
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | CyberPower Switched ATS PDU44007 - power distribution unit |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 2U |
| Weight | 17.59 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 200 - 240 V |
| Output Voltage | AC 200 - 240 V |
| Input Connectors | 2 x 2 x power NEMA L6-30P |
| Output connectors | 16 x power IEC 60320 C13 12 A ¦ 2 x power IEC 60320 C19 16 A ¦ 1 x power NEMA L6-30R 24 A |
| Networking | Ethernet, serial |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, SMTP, NTP, DHCP, IPv4, IPv6, LDAP, RADIUS, Syslog |
| Included Accessories | Cord retention tray |
| Color | Black |
| Dimensions (WxDxH) | 17.1 in x 8.4 in x 3.5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x serial - RJ-45 ¦ 1 x management (Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cord retention tray |
| Features | Metal housing, LCD display, built-in maintenance bypass, LED indicators, Automatic Transfer Switch (ATS), firmware upgradable |
| Compliant Standards | FCC Class A certified, RoHS, cTUVus, UL 62368 |
| Networking | |
| Remote Management Interface | Ethernet, serial |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, SMTP, NTP, DHCP, IPv4, IPv6, LDAP, RADIUS, Syslog |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Transfer Time | 10 ms |
| Power Device | |
| Input Voltage | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power NEMA L6-30P |
| Power Output Connectors Details | 16 x power IEC 60320 C13 12 A ¦ 2 x power IEC 60320 C19 16 A ¦ 1 x power NEMA L6-30R 24 A |
| Output Voltage | AC 200 - 240 V |
| Max Electric Current | 24 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 8.4 in |
| Height | 3.5 in |
| Weight | 17.59 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.6 in |
| Shipping Depth | 15.7 in |
| Shipping Height | 7.3 in |
| Shipping Weight | 20.7 lbs |
