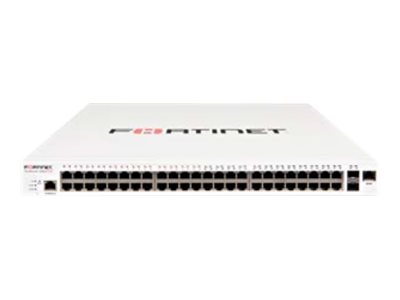

Fortinet - Fortinet FortiSwitch 248D-POE
Switch - managed - 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - rack-mountable - PoE+ (370 W)
Fortinet
FS-248D-POE
0040232306297
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiSwitch 248D-POE - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching throughput: 104 Gbps ¦ Forwarding performance: 155 Mpps ¦ Latency: 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Maximum aggregation groups: 26 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Features | Flow control, power over Ethernet (PoE), port mirroring, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), tagged VLAN, 1.5MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 16.9 in x 1.7 in |
| Weight | 15.45 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching throughput: 104 Gbps ¦ Forwarding performance: 155 Mpps ¦ Latency: 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Maximum aggregation groups: 26 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Authentication Method | RADIUS |
| Features | Flow control, power over Ethernet (PoE), port mirroring, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), tagged VLAN, 1.5MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP ¦ 1 x console RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 10 years |
| Compliant Standards | UL, VCCI, C-Tick, cUL, CB, RoHS, FCC Part 15 A |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 476 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 16.9 in |
| Height | 1.7 in |
| Weight | 15.45 lbs |
