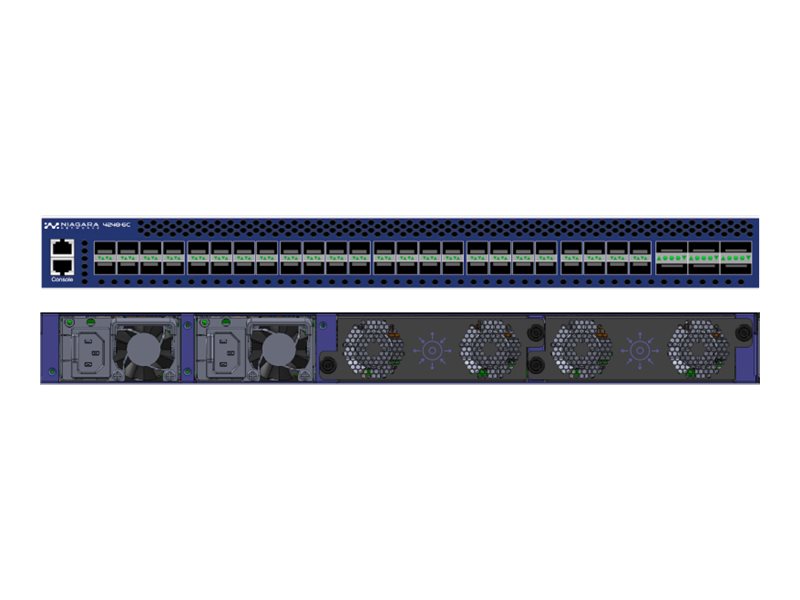

Niagara Networks - Niagara Networks FixedBroker 4248-6C
Network packet broker - main chassis AC, includes two field replaceable power units, OVP Enabled for up to 2 rear modules, includes license - L4 - 48 x 10 Gigabit / 25 Gigabit + 6 x 40/100 Gigabit Ethernet - desktop
Niagara Networks
4248-6C-MN-AC
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Niagara Networks FixedBroker 4248-6C - network packet broker - main chassis AC, includes two field replaceable power units, OVP Enabled for up to 2 rear modules, includes license |
| Device Type | Network packet broker - L4 |
| Subtype | 100 Gigabit Ethernet / 40 Gigabit Ethernet / 25 Gigabit Ethernet / 10 Gigabit Ethernet |
| Ports | 48 x 10 Gigabit / 25 Gigabit + 6 x 40/100 Gigabit Ethernet |
| Performance | Switching fabric bandwidth: 2 Tbps |
| Remote Management Protocol | CLI, SNMP, NTP |
| Features | OVP, full line-rate forwarding, full switching, aggregation mode, load balancing, port filtering, tunneling, clustering technology, Fabric Flow technology, traffic replication, GTP filtering, GRE termination, MPLS filtering, MPLS stripping, VXLAN filtering, VXLAN stripping, VLAN support, session stickiness |
| Power | AC 90-264 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 24 in x 17.3 in x 1.8 in |
| Weight | 25.13 lbs |
| General | |
| Device Type | Network packet broker - L4 |
| Enclosure Type | Desktop |
| Subtype | 100 Gigabit Ethernet / 40 Gigabit Ethernet / 25 Gigabit Ethernet / 10 Gigabit Ethernet |
| Ports | 48 x 10 Gigabit / 25 Gigabit + 6 x 40/100 Gigabit Ethernet |
| Performance | Switching fabric bandwidth: 2 Tbps |
| Remote Management Protocol | CLI, SNMP, NTP |
| Encryption Algorithm | TLS |
| Authentication Method | TACACS+, RADIUS |
| Features | OVP, full line-rate forwarding, full switching, aggregation mode, load balancing, port filtering, tunneling, clustering technology, Fabric Flow technology, traffic replication, GTP filtering, GRE termination, MPLS filtering, MPLS stripping, VXLAN filtering, VXLAN stripping, VLAN support, session stickiness |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B, ICES 003, EN 55032, EN55024, UL/CSA60950-1, EN 60950-1, IEC 60950-1, UL 62368, 2014/35/EU, ROHS Directive 2011/65/EU, WEEE 2012/19/EU, EMC 2014/30/EU |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 90-264 V (50 - 60 Hz) |
| Power Consumption Operational | 332 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 24 in |
| Depth | 17.3 in |
| Height | 1.8 in |
| Weight | 25.13 lbs |
